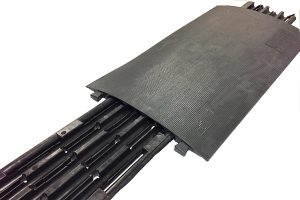

Cable Bridge X1

  • Large areas are quickly secured
  • Safe crossing of the cable areas
  • fast laying and connecting
  • firm ground contact

Function

The cable brigde X1 offers the inexpensive protection for power, telephone and data cables. Due to a specially ribbed anti-slip surface, the safe laying of cables in the passage area is possible. The cable bridge X1 made of TPU (Thermoplastic Polyuhrethane) is extremely abrasion-resistant and guarantees excellent grip due to a special material formulation.

Technical specifications

  • Length: approx. 806 mm
  • Width: approx. 435 mm
  • Height: approx. 37 mm
  • Channels: 5
  • Width (channels): approx. 30 mm
  • Height (channels): approx. 30 mm
  • High fitting accuracy
  • Moulded connector pins allow fast connection
  • Extremely abrasion resistant and flexible due to TPU (thermoplastic polyurethane)
  • Weight: approx. 3.6 kg

Characteristics

  • inexpensive
  • anti-slip surface
  • Injected studs
  • excellent grip due to special material formulation
