Function

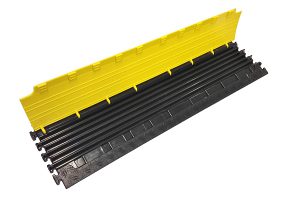

The cable bridge X3 combines easy installation with professional cable protection in the smallest of spaces. Thanks to its 6 channels, the X3 cable bridge can also be used for different cable layings and, with a height of just 32 mm, offers safe and wheelchair-suitable cable routing in public areas such as trade fairs, shopping malls, accessible construction sites, workshops and warehouses. Like all cable bridges from the M Technic X-series, the M Technic X3 is oil, acid and petrol resistant and has a patented self-cleaning closure hinge.
Technical specifications
- Length: 1000 mm
- Width: 280 mm
- Height: 32 mm
- Channels: 6
- Duct diameter: 17 mm
- Load capacity: approx. 2 t with an area of 20 x 20 cm
- Operating range: -30°C to + 60°C
- Flame protection class: B2 (available also as B1 – flame retardant – according to DIN4102)
- Weight: 4,37 Kg
Characteristics
- low height
- yellow warning colour in the lid
- low weight
