Function

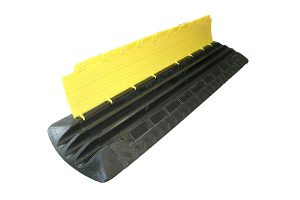

With its 3 channels, the X4 cable bridge offers plenty of space for power, water, gas, compressed air and hydraulic lines. Although the X4 cable bridge has also been designed for outdoor use, great importance has also been attached to its application indoors. The underside of the cable bridge X4 has an anti-slip surface. Like all cable bridges from the M Technic X-series, the cable bridge X4 is oil, acid & petrol resistant and has the patented self-cleaning locking hinge.
Technical specifications
- Length: 1000 mm
- Width: 290 mm
- Height: 48 mm
- Channels: 3
- Width of channels: 35 mm
- Trunking height: 30 mm, 35 mm, 30 mm
- Material: PU (polyurethane)
- Hardness range: 88 Shore ± 4
- Flame protection class: B2 according to DIN 4102
- Working range: -30°C to +60°C
- Load capacity: approx. 2 t with an area of 20 x 20 cm
- Weight: 5kg
Characteristics
- low height
- yellow warning colour in the lid
- captive lid
- low weight
