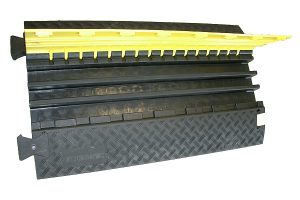

Cable Bridge X6

  • all applications
  • fast reliable recognition
  • Lid is always on site
  • very good adaptation

Function

The cable bridge X6 has been developed to protect against heavy trucks and is equipped with a non-slip yellow warning cover. This carries a tire load of 5 tons (20 x 20 cm). The cable bridges can be connected to each other by means of moulded pins. The lid closes on an integrated patented zipper. A complete range of accessories with bends and end pieces extends the X6 cable bridge into a flexible system for protecting cables and hoses.

Technical specifications

  • Length: 1000 mm
  • Width: 600 mm
  • Height: 73 mm
  • Channels 3
  • Width of trunking: 52,45,56 mm
  • Trunking height: 49,50,49 mm
  • Material: PU (polyurethane)
  • Hardness range: 88 Shore ± 4
  • Flame protection class: B2 according to DIN 4102
  • Working range: -40°C to +70°C
  • Load capacity: approx. 5 t with an area of 20 x 20 cm
  • Weight: 21,9kg

Characteristics

  • Truck accessible
  • yellow warning colour in the lid
  • captive lid
  • Bends available
