Function

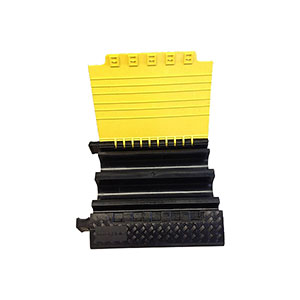

The cable bridge X8 offers 4 cable ducts for hoses up to 120mm (A-tube). At the same time, the cable bridge / hose bridge X8 is extremely resilient, so that it can also be used to protect against heavy trucks. The cable bridge / hose bridge X8 carries a tyre load of 6 tons (20 x 20 cm). No stones, broken pieces or other dangerous objects can be pressed into the cable or hose through the protective cover.
Technical specifications
- Length: approx. 700 mm
- Width: approx. 780 mm
- Height: approx. 139 mm
- Channels 4:
- 2 for 120 x 113 mm
- 2 for 33 x 50 mm
- Material: PU (polyurethane)
- Flame protection class: B2
- Load capacity: approx. 6 t with an area of 20 x 20 cm
- Resistant to oil, acid and petrol
- Operating range: -30° C to +60°C
- Weight: approx. 28 kg
Characteristics
- extremely high load-bearing capacity
- yellow warning colour in the lid
- captive lid
- Protective cover available
- very large channels
