Features
The patented charging column E Start is also closed when fully charged and is therefore always in a safe and flood-proof condition.
The charging column E Start has a mechanism so that they can also be opened and/or closed fully automatically by remote control, RFID or Key Code.

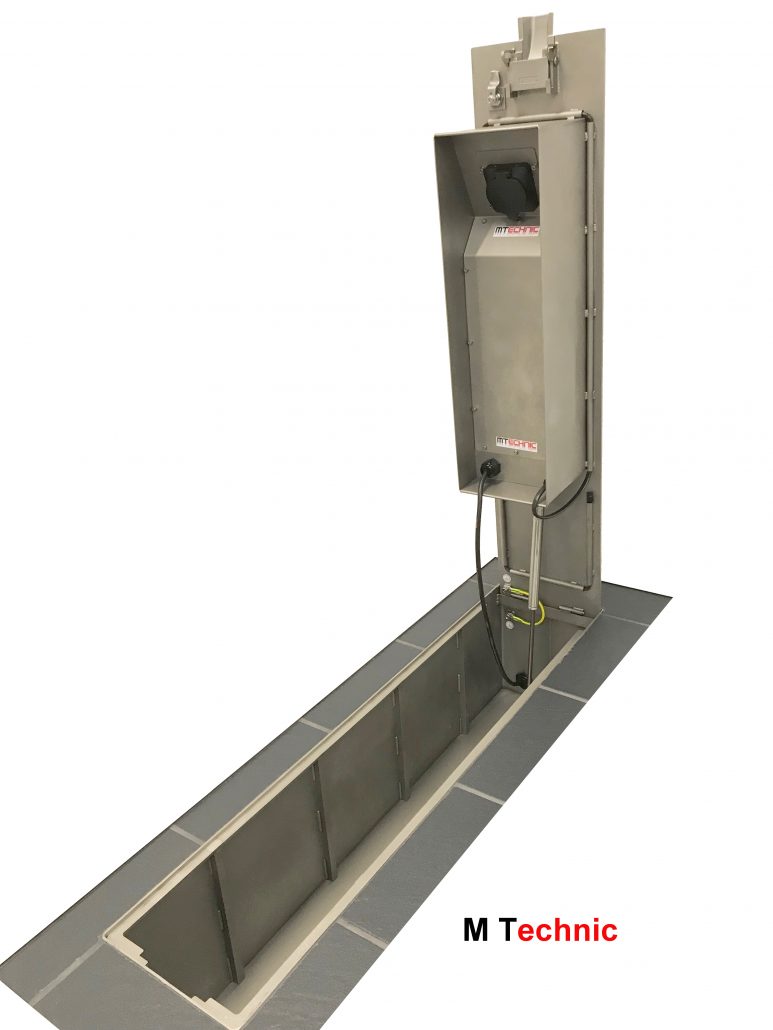

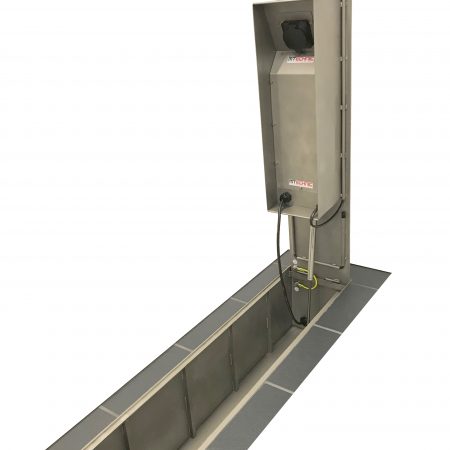

The charging socket is at a comfortable height after folding out so that you do not have to bend down. After plugging in the charging plug, the E Start is closed again. For this purpose, the cable is routed under the patented cable protection “PROtector” (load 12.5t or 40t) and protected.
The charging electronics can be installed in the charging column or in a decentralised unit. The charging unit can be connected to a server for energy management via the built-in Modbus.

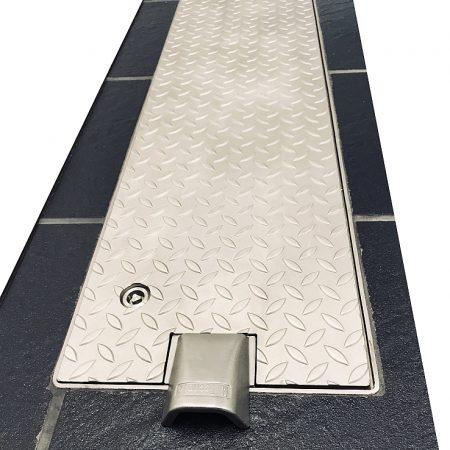

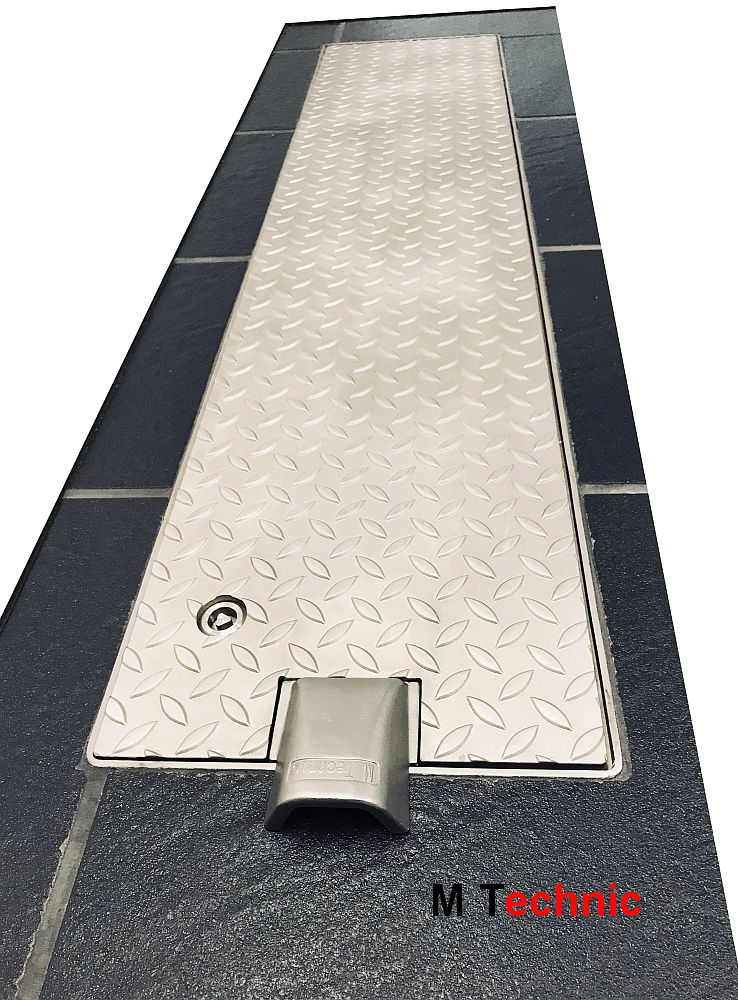

If the charging column E Start is not charged, the “PROtector” cable protection is simply folded down and the “PROtector” covers the cable outlet area with the surface at ground level.
Application
The patented charging column E Start can be used in all areas that could also be accessed and/or flooded during or after charging. These include parking spaces on pavements, free parking areas, company car parks, catering car parks and garage driveways.
The application is designed for electric/hybrid vehicles and e-bikes.
The charging column E Start is only folded up when the charging plug is plugged in. Otherwise, it is also vandal-proof during charging and at rest in the locked state.
When the charging column E Start is folded in, it can be driven over with 12.5t (B125) or 40t (D400) and at the same time it is flood-proof (IP68).
Technical Specifications
- the only charging station that can be completely driven over (12.5t, B125) (40t, D400 optional)
- during the charging process.
- closed flood-proof (IP68), open (IP65)
- with patented fold-away cable outlet protection system “PROtector”.
- AC charging to IEC 61851-1, mode 3
- optionally with built-in or without charging electronics with Modbus/TCP
- Backend systems via OCPP interface to load management (optional)
- thermostat-controlled heating for energy-saving winter operation
- housing made of stainless steel V2A (1.4301)
- lid made of non-slip stainless steel chequer plate
Versions:
- 1 x charging sockets Typ 2, IEC 62196-2, 32 A / 480 V (AC) 22kW, Item No: 40010000
IP 68 (floodable with closed lid, opened IP 65) without AC charge control - 1 x charging sockets Typ 2, IEC 62196-2, 32 A / 480 V (AC) 22kW, Item No: 4001000E
IP 68 (floodable with closed lid, opened IP 65), with AC charge control
and locking actuator - 2 x charging sockets Typ 2, IEC 62196-2, 32 A / 480 V (AC) 44kW, Item No: 40020000
IP 68 (floodable with closed lid, opened IP 65) without AC charge control - 2 x charging sockets Typ 2, IEC 62196-2, 32 A / 480 V (AC) 22kW, Item No: 4002000E
IP 68 (floodable with closed lid, opened IP 65), with AC charge control
and locking actuator - 4 x socket outlets with earthing contact 16 A 3-pin 230 V, Item No: 40000400
IP 68 (floodable with closed lid, opened IP 65),
- Dimensions: LxWxD: 1160mm x 260mm x 300mm
- Load capacity 125 KN (12.5 t) B125 according to DIN EN 124 (400 KN (40 t) D400 optional)
- Weight approx. 75 kg
Characteristics
- During charging, the charging column E Start and the cable outlet opening can be passed over and are protected against flooding
- with patented “PROtector” cable outlet protection
- operationally lockable with a stainless steel lock (option: remote control via manual release, RFI, APP or key code)
- forced protection of the cables at the cable outlet opening either by the “PROtector” or by the cover plate
- completely made of stainless steel V2A (1.4301)
